产品名称:1/10 4WD EP SCT (NO.:H9805)

详细介绍

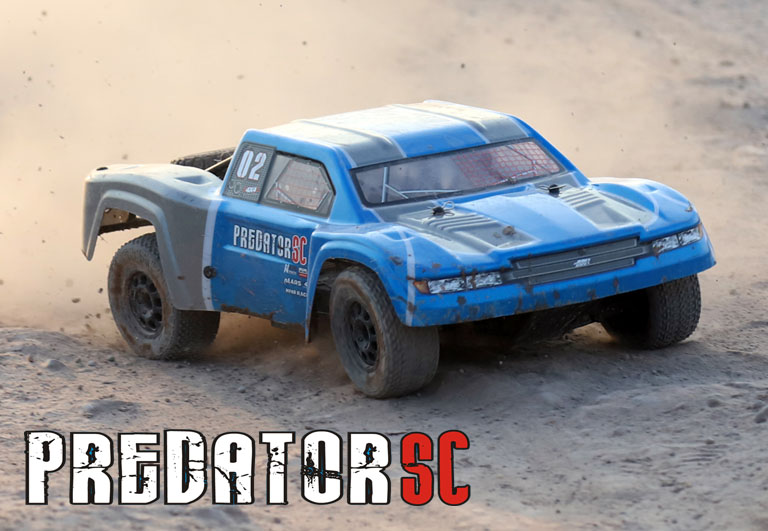

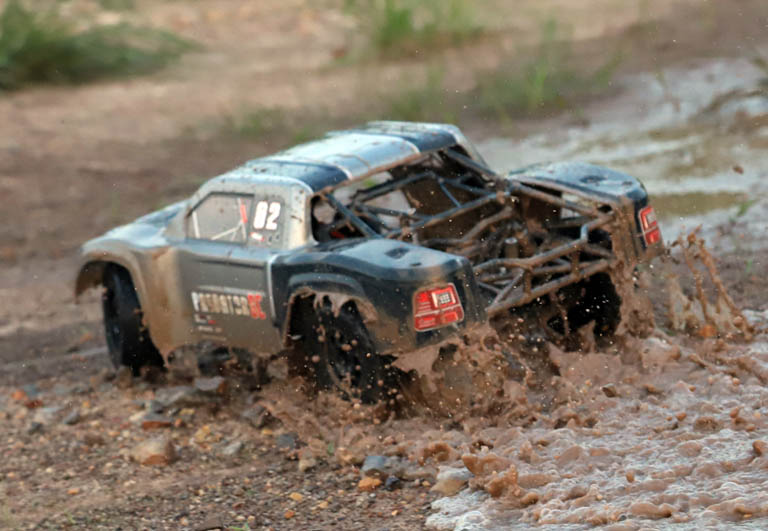

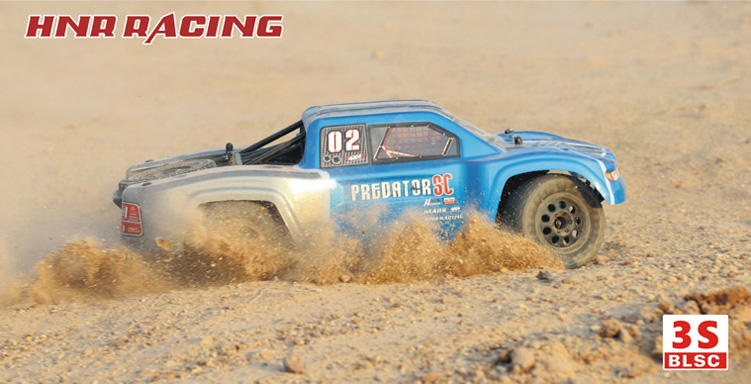

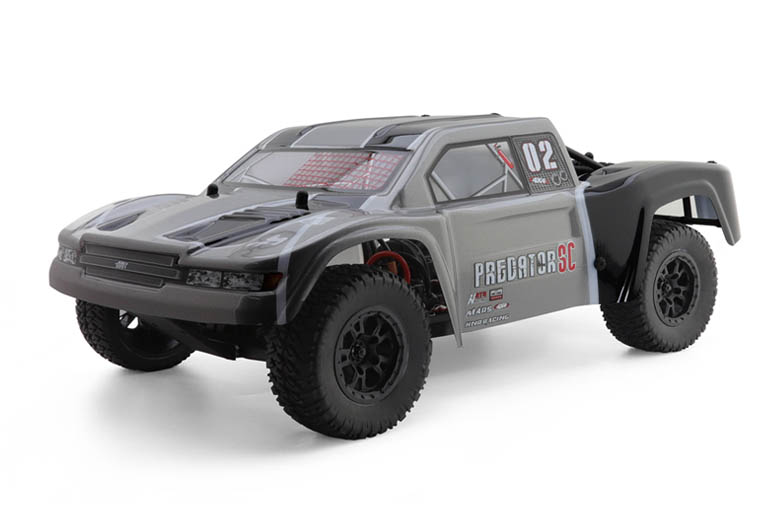

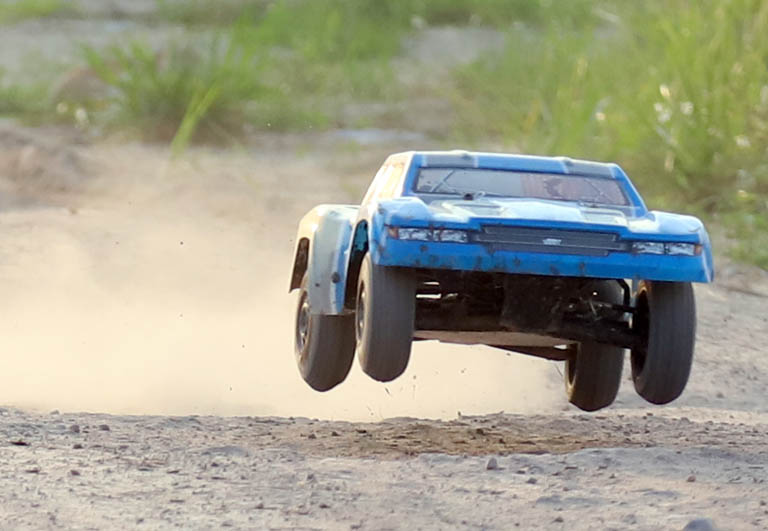

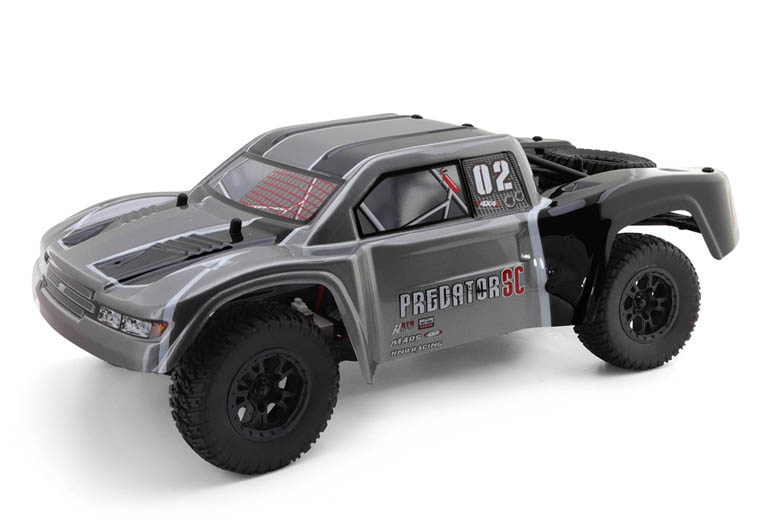

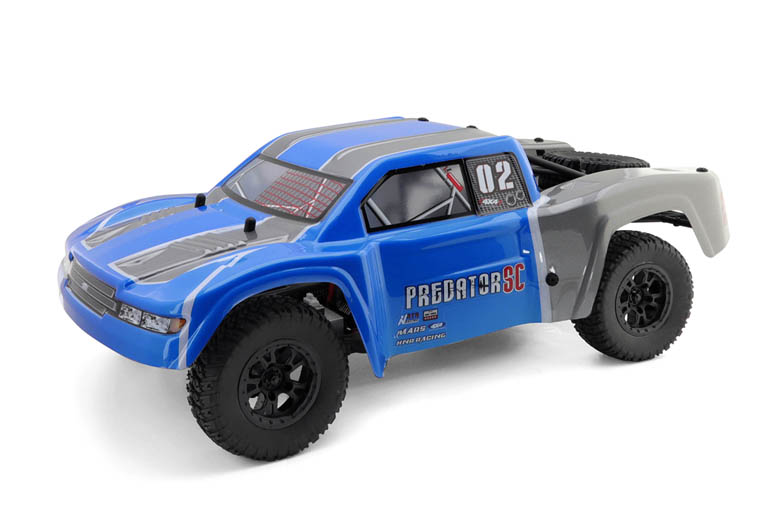

HNR new "PREDATOR" is 1/10 mid-end entry short-course truck.  Predator  uses roll carge with spare tire, showing highly simulation and walking dynamics. Also, Predator  is equipped with  Hobbywing Max 10RTR 80A brushless ESC and 3660-3600KV motor, which can use 2S~3S LiPo battery. The top speed could reach 70km/h. The frame configuration is excellent, those are, solid 2mm 6061 alloy chassise, front CVA drive shaft,  front and rear powder metallurgy umbrella  gear and 3-speed differential transmission system, adjustable link assebled in suspension system of the whole vehicle, aluminum alloy motor brace and the quick-disassembly battery tray mounted in middle,ect.  Thus,  Predator V2 shows very powerful features and potential before public.

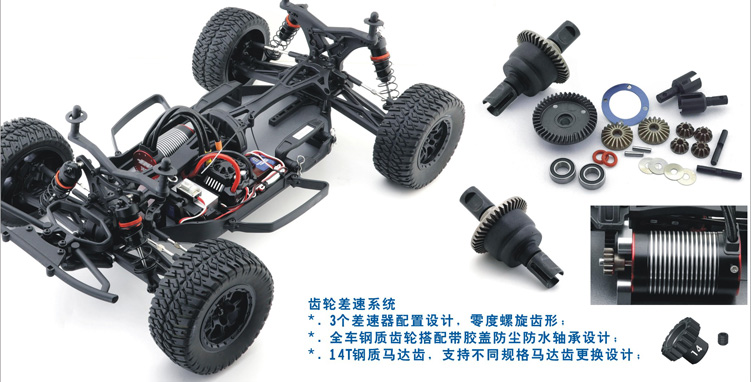

Differential System
*. 3 differential configuration with zero-degree spiral tooth ;
*. All steel gear is equipped with dustproof and waterproof bearing with rubber cover;
*. 14T Steel motor gear, supporting to change into different motor gear;

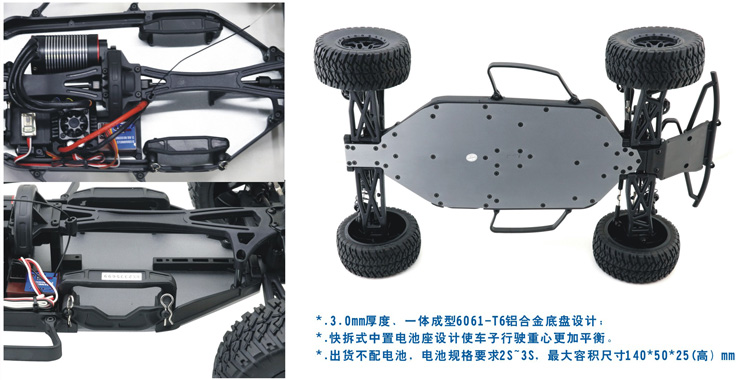

3.0mm thickness
Integrated 6061-T6 aluminum alloy chassis
* The quick-disassembly Battery Tray mounted in middle makes the gravity center of vehicle more balanced
*.Battery unassembled in factory.
*.battery specifications requires 2S~3S.
*.Battery Maximum Size:140x50x25mm (LxWxH).

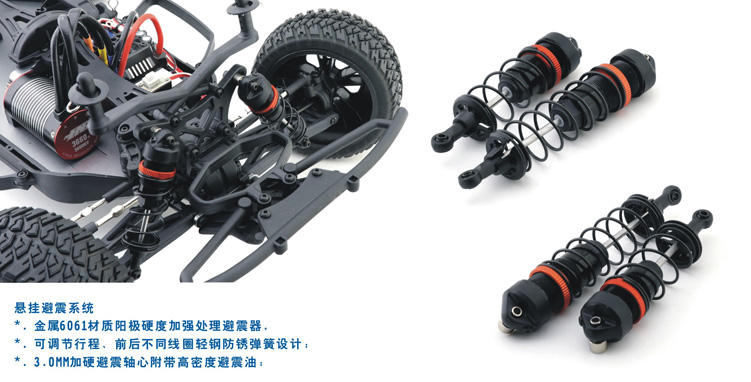

Suspension System

*. shock absorber made of metal 6061 material with enhanced anode and hardness treatment,
*. Adjustable stroke, light steel anti-rust spring with different coils in front and rear
*. 3.0MM hardened axis with high-density shock absorber oil;

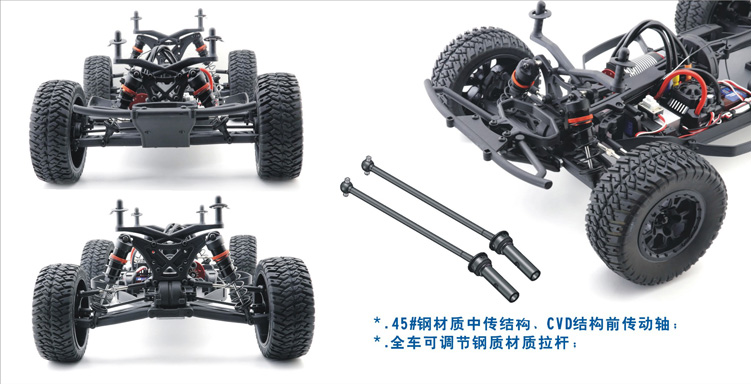

*.45# steel CVD structure transmission axle;
*.All adjustable steel material links

*. MT tire for all-terrain trucks;
*.2.2”x3.0”Plastic nylon wheel frame;
*.Metal Wheel Hex with machined screws design

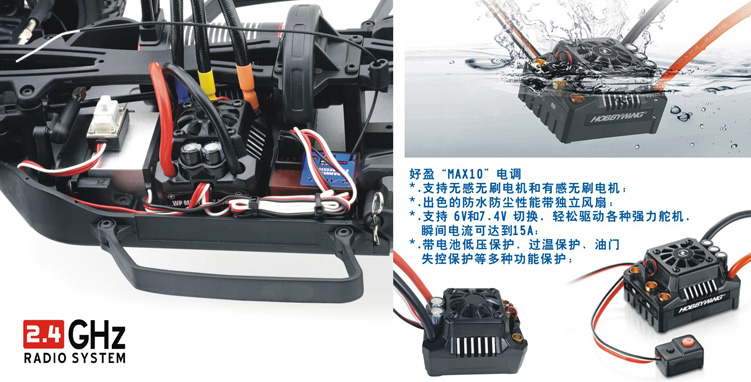

Hobbywing "MAX10"Electronic Speed Control
*.Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).
*.Fully waterproof design for all weather conditions with independent fan.
*.Super internal switch-mode BEC with switchable voltage of 6V/7.4V  for easily driving big torque servos and high voltage servos.
  The instantaneous current can reach 15A;
*.Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe.

Hobbywing 3660/3660KV Brushless Motor
*. Better motor linearity and stable rotor magnetism;
*. The shell temperature can reach 100°C (212 F);
*. Equipped with aluminum alloy motor mount

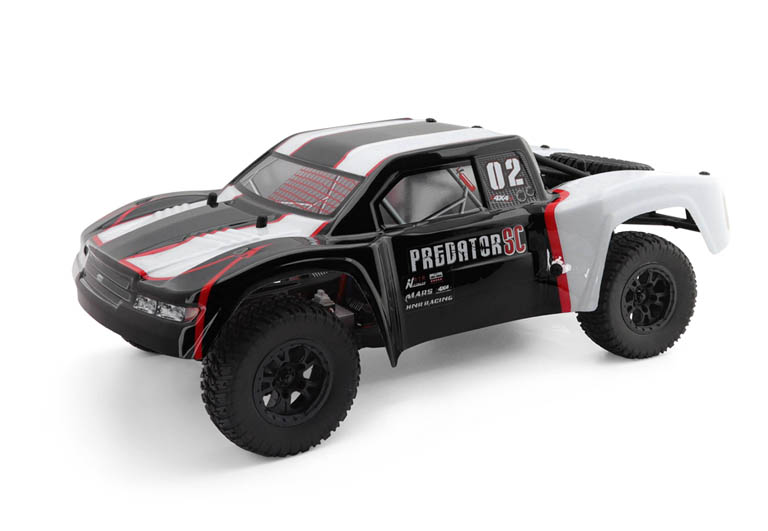

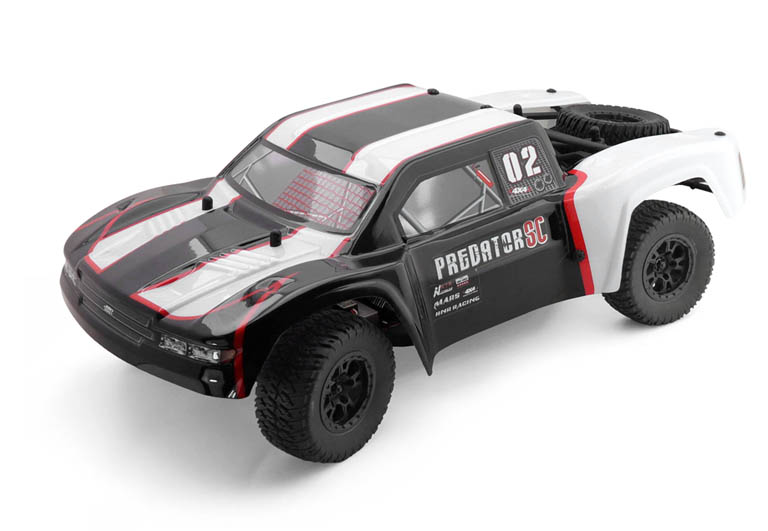

*.1.5MM thick color printed bodyshell

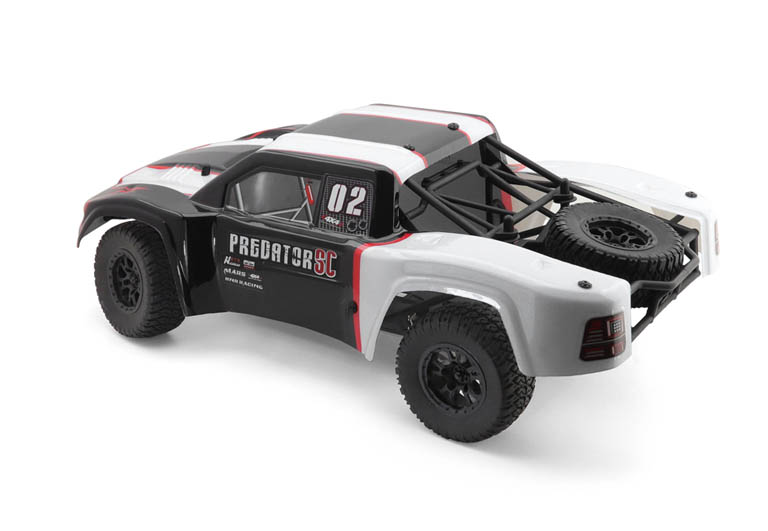

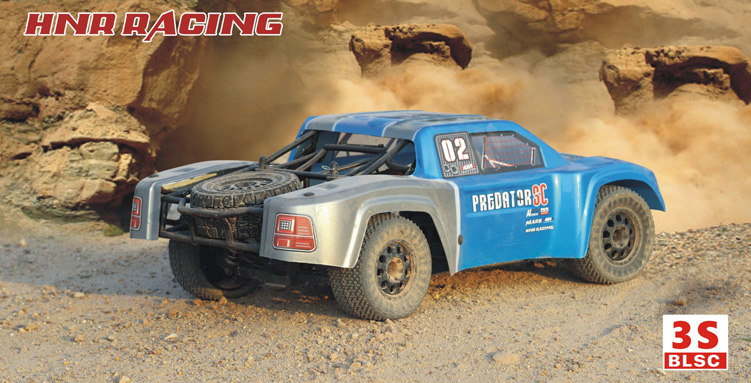

*.Plastic Roll Cage Design

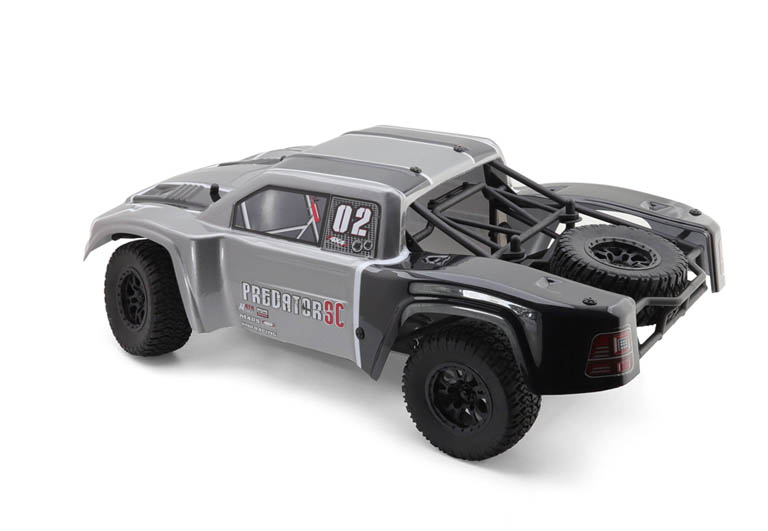

*.One wheel mounted in Roll cage in factory
